Open Additional Stored View of Diagram Entity

To align diagram usability with GENESYS, Sidekick allows the user to view additional diagrams (as stored views) of a member entity on a Review Object diagram. From the main diagram of the Task Execution page, the user can command an entity node or edge to open a secondary display containing the selected stored view.

open additional stored view of diagram entity 1.png

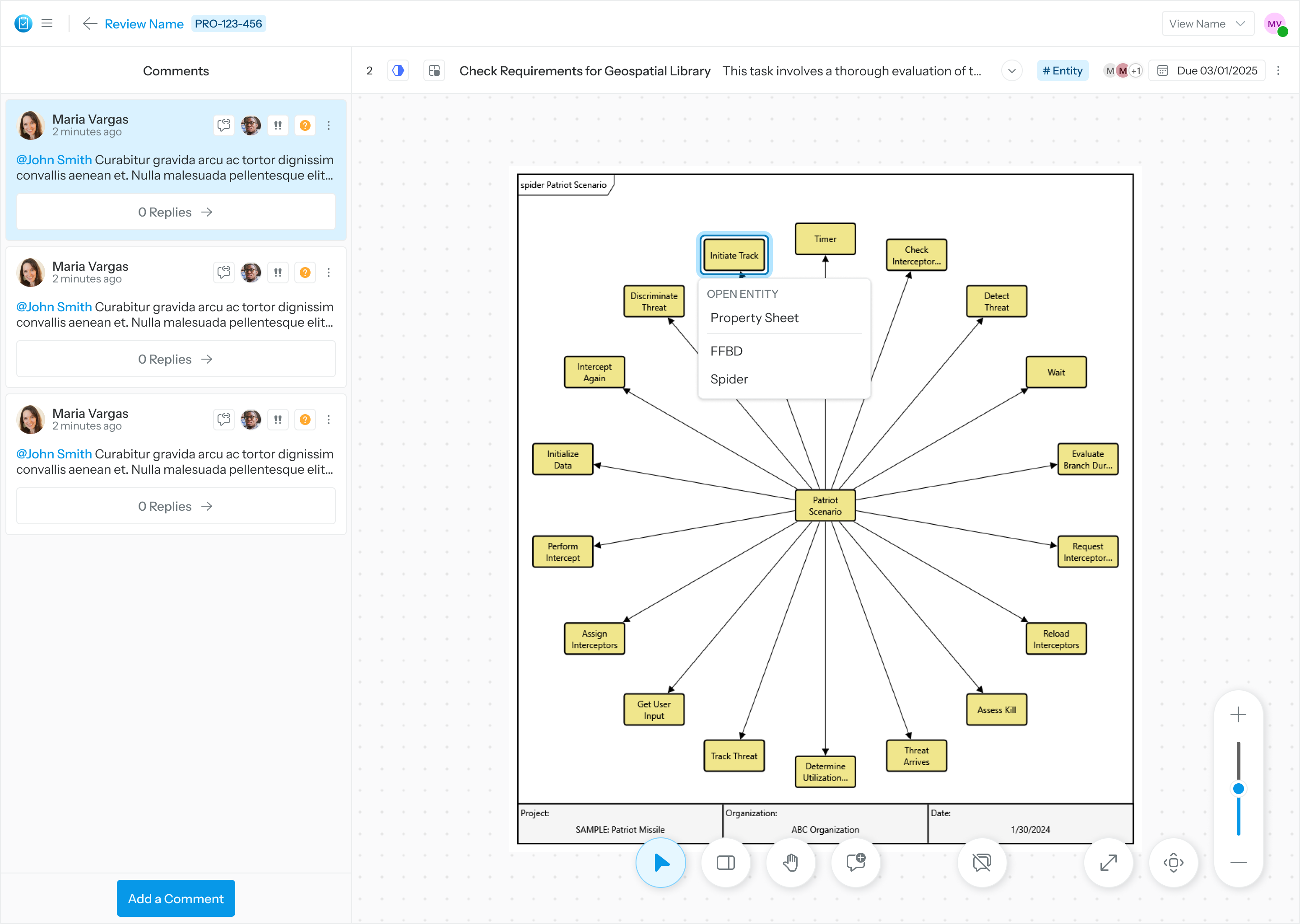

Right Click on an Entity Node to see its Stored Views and select one
open additional stored view of diagram entity.png

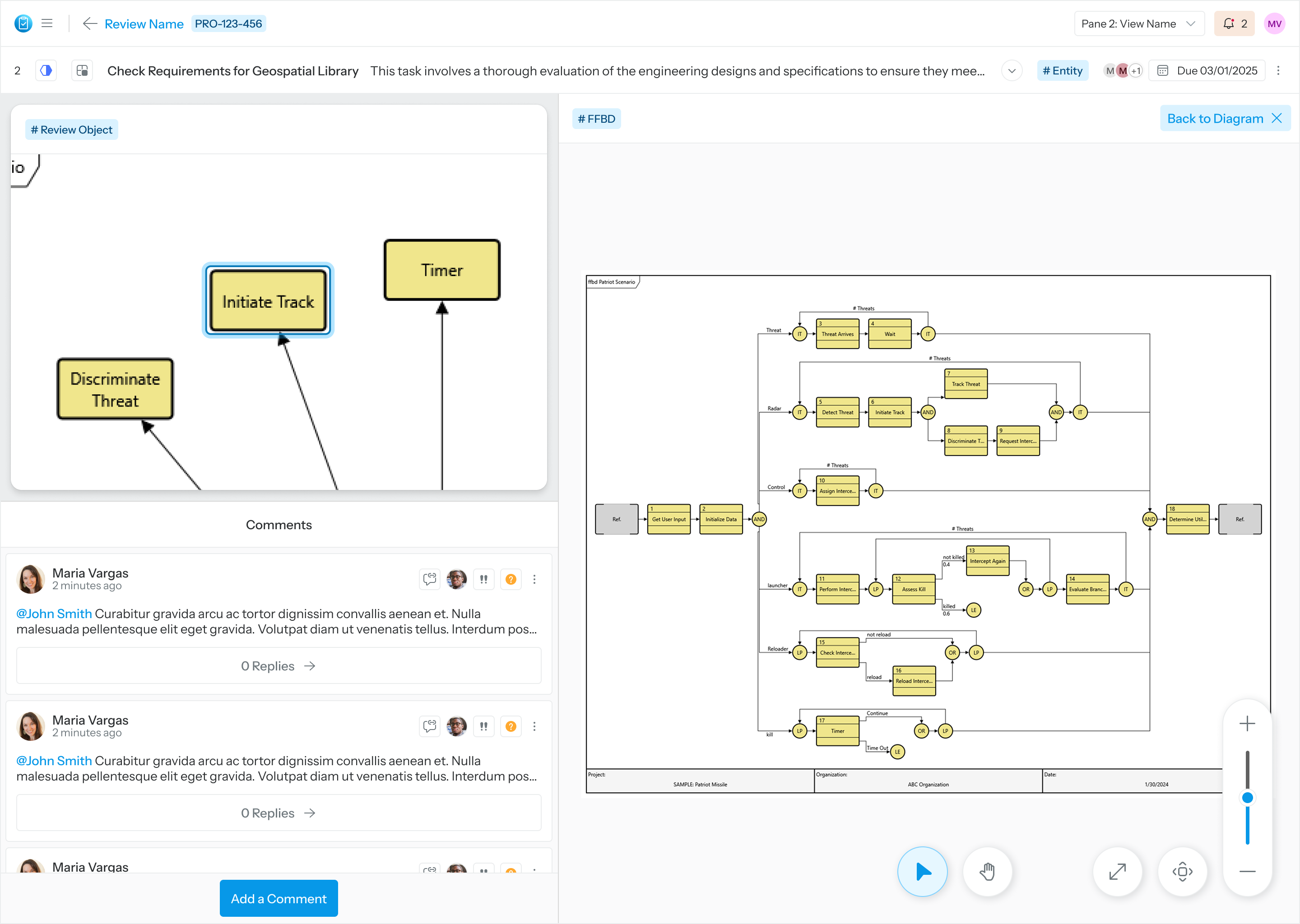

User can see Stored View with context from Task
